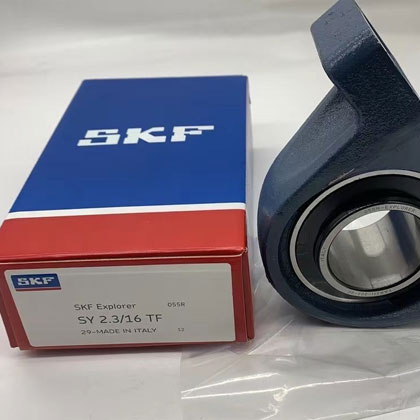

Categories: Pillow Block Bearing
|
d |
55.563 mm | Bore diameter |
|
d1 |
≈69.06 mm | Shoulder diameter inner ring |
|
A |
60 mm | Base width |
|
A1 |
40 mm | Top width |
|
A5 |
37.5 mm | Standout of end cover |
|
B |
55.6 mm | Width of inner ring |
|
B4 |
9 mm | Distance from locking device side face to thread centre |
|
H |
63.5 mm | Height of spherical seat centre |
|
H1 |
24 mm | Foot height |
|
H2 |
126 mm | Overall height |
|
J |
171.5 mm | Distance between attachment bolts |
|
J |
max.181 mm | Distance between attachment bolts |
|
J |
min.162 mm | Distance between attachment bolts |
|
L |
219 mm | Overall length |
|
N |
18 mm | Diameter of attachment bolt hole |
|
N1 |
27.5 mm | Length of attachment bolt hole |
|
s1 |
33.4 mm | Distance from locking device side face to raceway centre |
| THREADED HOLE | ||
|
RG |
1/4-28 UNF | Housing thread for the grease fitting |
|
R1 |
4.5 mm | Axial position of the housing thread |
|
Rα |
45 ° | Angular position of the housing thread |
| GREASE FITTING | ||
|
DN |
6.5 mm | Diameter of head sphere of grease fitting |
|
SWN |
7 mm | Hexagonal key size for the grease fitting |
|
GN |
1/4-28 SAE-LT | Thread of the grease fitting |
| DOWEL PINS | ||
|
J6 |
201 mm | Distance of dowel pins |
|
J7 |
21 mm | Axial offset of dowel pins |
|
N4 |
4 mm | Recommended diameter for dowel pins |
