- d – 90 mm
- D – 125 mm
- B – 18 mm
- C – 18 mm
- Angle (α) – 18 °
- a – 26,5 mm
- b – 0,7 mm
- r min. – 1,1 mm
- r1 min. – 0,6 mm
- A – 102 mm
- da min. – 97 mm
- Da max. – 118 mm
- ra max. – 1 mm
- Weight – 0,48 Kg
- Basic dynamic load rating (C) – 31,5 kN
- Basic static load rating (C0) – 29,7 kN
- (Grease) Lubrication Speed – 16800 r/min
- (Oil) Lubrication Speed – 26100 r/min
点击空白处返回
![]()
Angular contact ball bearings
Brand: NAK

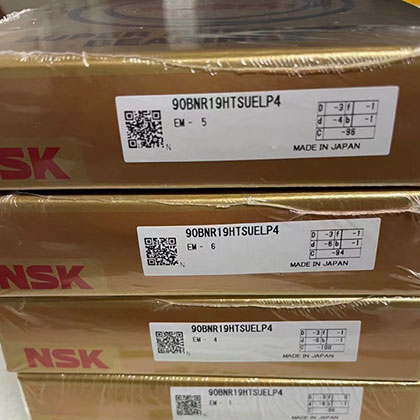

Model: 90BNR19H
Type: Angular contact ball bearings
