The LM Guide (Linear Motion Guide) is our
main product, incorporating a part with a linear
rolling motion into practical usage for the first
time in the world. It realizes the development of
high-precision, high-rigidity, energy-saving, high-
speed machines with long service life
Categories: Linear Guide Bearing, THK

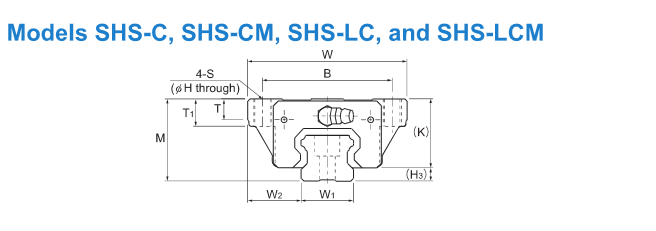

| Model No. | Outer dimensions | LM block dimensions | |||||||||||||
| Height M | WidthW | Length L | B | C | S | H | L | T | T₁ | K | N | E | Grease nipple | ||
| SHS 15C SHS15CM | 24 | 47 | 64.4 | 38 | 30 | M5 | 4.4 | 48 | 5.9 | 8 | 21 | 5.5 | 5.5 | PB1021B | |
| SHS 15LC SHS15LCM | 24 | 47 | 79.4 | 38 | 30 | M5 | 4.4 | 63 | 5.9 | 8 | 21 | 5.5 | 5.5 | PB1021B | |
| SHS20C SHS20CM | 30 | 63 | 79 | 53 | 40 | M6 | 5.4 | 59 | 7.2 | 10 | 25.4 | 6.5 | 12 | B-M6F | |
| SHS 20LC SHS20LCM | 30 | 63 | 98 | 53 | 40 | M6 | 5.4 | 78 | 7.2 | 10 | 25.4 | 6.5 | 12 | B-M6F | |
| SHS 25C SHS 25CM | 36 | 70 | 92 | 57 | 45 | M8 | 6.8 | 71 | 9.1 | 12 | 30.2 | 7.5 | 12 | B-M6F | |
| SHS 25LC SHS25LCM | 36 | 70 | 109 | 57 | 45 | M8 | 6.8 | 88 | 9.1 | 12 | 30.2 | 7.5 | 12 | B-M6F | |
| SHS 30C SHS 30LC | 42 | 90 | 106131 | 72 | 52 | M10 | 8.5 | 80 105 | 11.5 | 15 | 35 | 8 | 12 | B-M6F | |
| SHS 35C SHS 35LC | 48 | 100 | 122152 | 82 | 62 | M10 | 8.5 | 93 123 | 11.5 | 15 | 40.5 | 8 | 12 | B-M6F | |
| SHS 45C SHS 45LC | 60 | 120 | 140174 | 100 | 80 | M12 | 10.5 | 106140 | 14.1 | 18 | 51.1 | 10.5 | 16 | B-PT1/8 | |
| SHS 55C SHS 55LC | 70 | 140 | 171213 | 116 | 95 | M14 | 12.5 | 131173 | 16 | 21 | 57.3 | 11 | 16 | B-PT1/8 | |
| SHS 65C SHS 65LC | 90 | 170 | 221272 | 142 | 110 | M16 | 14.5 | 175226 | 18.8 | 24 | 71 | 19 | 16 | B-PT1/8 | |
